AUSA C351H
Discover the AUSA C351H all-terrain forklift, the pinnacle of modern, high-tech design combined with ultimate safety features. Boasting a robust 3,500 kg (7,700 lb) payload capacity and a seamless hydrostatic transmission, this forklift ensures comfortable operation in the toughest conditions. It’s engineered for efficiency and safety, making it perfect for industries requiring reliable heavy-lifting capabilities. The AUSA C351H enhances productivity with its advanced technology and superior design, offering the best performance in even the most challenging environments. Opt for the AUSA C351H for a forklift that excels in power, safety, and operational ease.
Description
Introducing the AUSA C351H all-terrain forklift, a marvel of engineering that combines advanced technology, superior safety features, and robust performance with a 3,500 kg (7,700 lb) payload capacity. Equipped with a comfortable hydrostatic transmission, this forklift is designed to tackle the most challenging terrains while ensuring smooth and responsive handling.

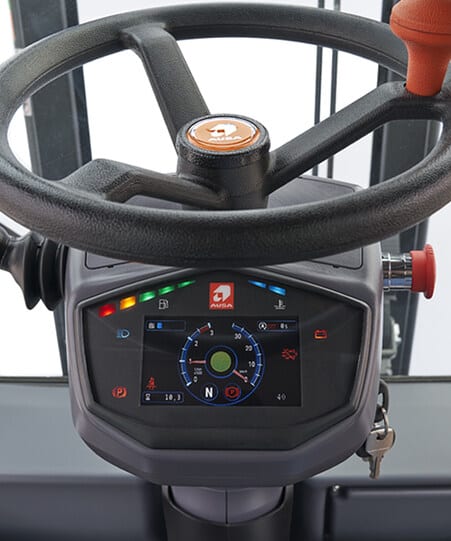

The C351H’s cabin is a hub of technological innovation. A digital screen positioned next to the steering wheel provides operators with real-time data including speed, temperature, alarms, and sensor readings. The intuitive cab joystick allows for effortless interaction with the system, enabling operators to run self-diagnostics and ensure the machine is always operating at peak efficiency.
EcoMode is another standout feature of the C351H, automatically regulating the engine’s RPM based on current workload demands. This not only maximizes power but also minimizes fuel consumption and emissions, making the C351H both powerful and environmentally friendly.

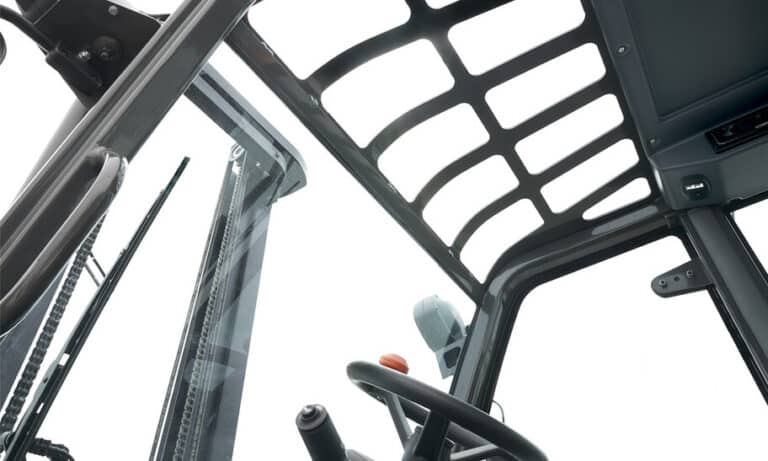

Visibility is significantly enhanced in the C351H, offering a 360º view from the driver’s cab. This model boasts a 30% increase in outside visibility over previous models, greatly improving safety by ensuring operators have a clear view of their surroundings, essential in preventing accidents on busy sites.

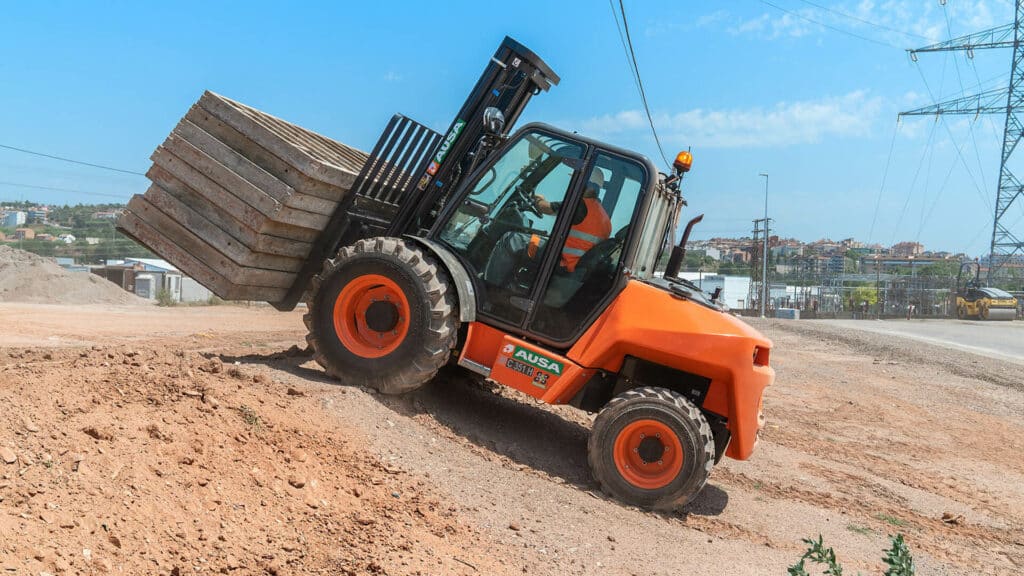

Moreover, the innovative Hill Holder system ensures the forklift remains stationary on slopes when the accelerator is released, adding an extra layer of safety and stability during operation.
Overall, the AUSA C351H sets new standards for all-terrain forklifts, offering unmatched performance, safety, and efficiency in the most demanding environments.
| General | Load capacity: | 7000 lb |
|---|---|
| General | Load capacity to 500 mm (20 in): | - |
| General | Load capacity to 600 mm (24 in): | 7000 lb |
| General | Empty weight: | 11940 lb |
| General | Transmission: | Hydrostatic |
| General | Maximum lift: | 17.88 ft |
| Engine | Brand: | Kubota |
| Engine | Model: | V2403 – CR E5B |
| Engine | Power: | 41.8 hp |
| Engine | Torque: | V2403-CR E5B |
| Engine | No. of cylinders: | 4 |
| Engine | Emissions: | Stage V – EPA Tier 4f |
| Engine | Noise level: | 104 dB(A) |
| Driving | Max. speed: | 12.4 mph |
| Driving | Maximum gradient: | 30 % |
| Driving | External turning radius: | 171 in |
| Driving | Traction: | 4×4 FullGrip® |
| Driving | Tyres: | 16/70-20 12-16,5 |
| Hydraulic system | Hydraulic circuit: | Two gears pump |
| Hydraulic system | Flow rate: | 13.2 gal/min |
| Hydraulic system | Working pressure: | 2900 psi |
| Deposit Capacity | Fuel: | 16.4 gal |
| Deposit Capacity | Hydraulic system: | 13.5 gal |
| Brakes | Service: | Hydraulic, sealed, multi-disc |
| Brakes | Parking: | Sealed, multi-disc |
| Mast | Fork carriage: | FEM 3 |
| Mast | Carriage width: | 49.6 in |
Features
- Driving position | Open FOPS cab
- Driving position | Semi-closed FOPS cab with front, rear and upper windscreens (Optional)
- Driving position | Closed FOPS cab with heating (Optional)
- Driving position | Tilting cab with assisted lift
- Driving position | Closed FOPS cab with heating and air conditioning (Optional)
- Driving position | Open ROPS/FOPS cab (Optional)
- Driving position | Semi-closed ROPS/FOPS cab with front, rear and upper windscreens (Optional)
- Driving position | Closed ROPS/FOPS cab with heating (Optional)
- Driving position | Closed ROPS/FOPS cab with heating and air conditioning (Optional)
- Masts | 8.7 ft duplex mast
- Masts | 13.1 ft triplex mast
- Masts | 10.8 ft duplex mast
- Masts | 12.1 ft triplex mast (Optional)
- Masts | 13.9 ft triplex mast
- Masts | 17.9 ft triplex mast
- Masts | 14.1 ft triplex mast with wide shaft
- Masts | Triplex mast 17.7 ft (Optional)
- Safety | Seat belt with fasten sensor
- Safety | Rotating beacon
- Safety | Acoustic warning for reverse gear
- Safety | Emergency stop (Optional)
- Safety | Exhaust spark arrestor (Optional)
- Safety | Seat with operator’s presence sensor
- Safety | Hill Holder – hill-start assist
- Safety | Joystick lock
- Lighting and driving | Approved lighting system
- Lighting and driving | Front (2) and rear (1) working lights
- Lighting and driving | Rear-view mirrors
- Lighting and driving | Fast reverse speed
- Lighting and driving | Approved lighting system with LED daylight (Optional)
- Lighting and driving | Front and rear LED working lights (Optional)
- Comfort | Adjustable ergonomic seat
- Comfort | Highly comfortable seat, fully adjustable (Optional)
- Comfort | All-in-one joystick
- Comfort | Armrest
- Comfort | Steering wheel with adjustable tilt and reach
- Advanced equipment | Hydrostatic transmission
- Advanced equipment | Inching pedal
- Advanced equipment | Second-generation FullGrip® (4×4)
- Advanced equipment | Limited-slip differential on the front axle
- Advanced equipment | Digital display
- Advanced equipment | ECO Mode system
- Forks | 39.4 in forks
- Forks | 47.2 in forks
- Forks | 49.6 in FEM II fork carriage
- Forks | 47 in load rest
- Forks | Built-in side shifter
- Forks | 49.2 in load rest (Optional)
- Forks | 65,4 in type FEM IV fork carriage
- Forks | 65.3 in load rest (Optional)
- Forks | 70.9 in forks (Optional)
- Implements | 111-gal shovel
- Implements | 106-gal shovel
- Implements | 159-gal shovel
- Implements | 211-gal shovel (Optional)
- Implements | 264-gal shovel (Optional)
- Accessories | 4th valve for two-way action control (Optional)
- Accessories | Load damper (Optional)
- Accessories | Reverse gear acoustic warning disable switch (Optional)
- Accessories | Waterproof document holder
- Accessories | Water separator diesel filter
- Accessories | Air filter with cyclone pre-filter (Optional)
- Accessories | Biodegradable hydraulic oil
- Accessories | Car radio (Optional)
- Tyres | 520/50R17 front and 31×15.5-15 rear flotation tyres
- Parts | 1,000 h maintenance kit (Optional)
- Parts | Standard front and rear spare wheels (Optional)
