AUSA T204H Telehandler

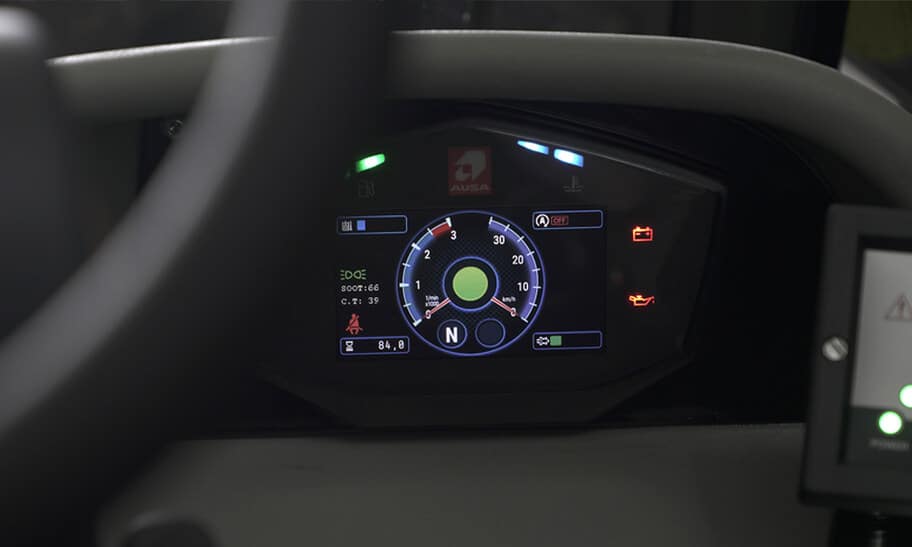

The AUSA T204H Telehandler, offered by Prime Equipment, sets the benchmark in its class as the most compact and advanced telescopic handler. With a payload capacity of 2000 kg (4,400 lb) and a maximum reach of 4.2 meters (13.8 feet), it is perfectly suited for various demanding environments. Operators benefit from an intuitive interior digital display that facilitates seamless control over all aspects of the telehandler, allowing easy and efficient interaction with the diagnostics menu and maintenance parameters. This level of sophistication ensures the T204H delivers optimal performance and versatility in tight spaces and challenging conditions.
Description
The AUSA T204H Telehandler, provided by Prime Equipment, is the epitome of compactness and advanced technology in its class. Boasting a 2000 kg (4,400 lb) payload and a maximum height of 4.2 meters (13.8 feet), this telehandler excels in versatility and operational efficiency. Operators can seamlessly manage and monitor performance through a comprehensive interior digital display, allowing quick, easy access to the diagnostics menu and maintenance parameters.
Equipped with a 4x4x4 drive and three distinct steering modes—front-wheel, all-wheel, and crab mode—the T204H adapts effortlessly to various terrains. This feature is invaluable in tight spaces where maneuverability is crucial, enabling precise movements and approaches. The telehandler also incorporates hydraulic functions and quick-connect couplings for a wide range of accessories and implements, significantly expanding its potential applications across different industries.
The design of the T204H focuses heavily on operator comfort and safety. The spacious and functional cab is crafted to provide an optimal working environment, with the placement of the boom offering a 360° view around the machine. This panoramic visibility ensures a higher level of safety and operational control, reducing the risk of accidents and increasing efficiency on the job site.
Ideal for those in construction, agriculture, or any industry requiring robust material handling solutions, the AUSA T204H Telehandler represents a perfect blend of performance, flexibility, and safety. It sets a new standard for telescopic handlers, proving that even the most compact models can deliver exceptional results. For more information on this model and others, contact Prime: Equipment today.
| General | Load capacity: | 4400 lb |
|---|---|
| General | Load capacity at maximum height: | 3300 lb |
| General | Empty weight: | 9259 lb |
| General | Transmission: | Hydrostatic |
| General | Maximum lift: | 13.8 ft |
| General | Maximum lift under maximum load: | 12.3 ft |
| General | Maximum reach: | 6.8 ft |
| General | Maximum load at maximum reach: | 2204 lb |
| Engine | Brand: | Kubota |
| Engine | Model: | D1803-CR-T-E5B |
| Engine | Power: | 44.5 hp |
| Engine | Torque: | 150,5@1500 |
| Engine | No. of cylinders: | 3 |
| Engine | Emissions: | Stage V – EPA Tier 4f |
| Engine | Noise level: | 104 dB(A) |
| Driving | Max. speed: | 12.4 mph |
| Driving | Maximum gradient: | 42 % |
| Driving | External turning radius: | 119,76 in |
| Driving | Steering modes: | Two-wheel front steer, four-wheel and crab |
| Driving | Traction: | 4x4x4 |
| Driving | Tyres: | 10/75-15.3 |
| Hydraulic system | Flow rate: | 13.68 gal/min |
| Hydraulic system | Working pressure: | 3481 psi |
| Tank capacity | Fuel: | 17.2 gal |
| Tank capacity | Hydraulic system: | 18.5 gal |
| Brakes | Service: | Hydrostatic, disc |
| Brakes | Parking: | Mechanical |
Features
- Driving position | Semi-closed ROPS/FOPS cab with front, rear and upper windscreens
- Driving position | Closed ROPS/FOPS cab with heating (Optional)
- Driving position | Closed ROPS/FOPS cab with heating and air conditioning (Optional)
- Driving position | Tilting cab with assisted lift
- Couplers | AUSA mechanical coupler
- Couplers | Universal hydraulic quick coupler (includes 5th hydraulic line) (Optional)
- Couplers | EURO8 hydraulic quick coupler (includes 5th hydraulic line) (Optional)
- Safety | Seat belt with fasten sensor
- Safety | Seat with operator’s presence sensor
- Safety | Rotating beacon
- Safety | Acoustic warning for reverse gear
- Safety | Emergency stop
- Safety | Load level indicator
- Safety | Overload locking system with 60-second deactivation push-button
- Safety | Windscreen protective grill (Optional)
- Lighting and Driving | Road lights (Optional)
- Lighting and Driving | Front work lights
- Lighting and Driving | Rear working light (Optional)
- Lighting and Driving | Rear-view mirror
- Lighting and Driving | Right-side panoramic rear-view mirror
- Comfort | Adjustable ergonomic seat
- Comfort | All-in-one joystick
- Comfort | Inverted joystick functions (Optional)
- Advanced Equipment | Hydrostatic transmission
- Advanced Equipment | Limited-slip differential on the front axle
- Advanced Equipment | Front-wheel, four-wheel and crab steering modes
- Advanced Equipment | Inching pedal
- Advanced Equipment | Digital display
- Forks | 47.2 in forks
- Forks | 41 in fork carriage
- Forks | 47 in load rest (Optional)
- Forks | Built-in FEM II side shifter with 47 in load rest (Optional)
- Implements | Two-hand control for locking and unlocking attachments
- Implements | 159-gal shovel (Optional)
- Implements | 185-gal shovel (Optional)
- Implements | 105-gal 4×1 multi-function shovel (Optional)
- Accessories | 4th auxiliary hydraulic line
- Accessories | 5th auxiliary hydraulic line (Optional)
- Accessories | 4th auxiliary hydraulic line with continuous flow (Optional)
- Accessories | 5th auxiliary hydraulic line with continuous flow (Optional)
- Accessories | Car radio (Optional)
- Accessories | Waterproof document holder (Optional)
- Accessories | Water separator diesel filter
- Accessories | Air filter with cyclone pre-filter (Optional)
- Accessories | Biodegradable hydraulic oil (Optional)
- Accessories | Towing hitch ball with power socket (Optional)
- Tyres | Low-profile tyres 27×10-12″ TT 14PR
- Parts | 1,000 h maintenance kit
- Parts | Standard spare wheel
