AUSA DR601AHG

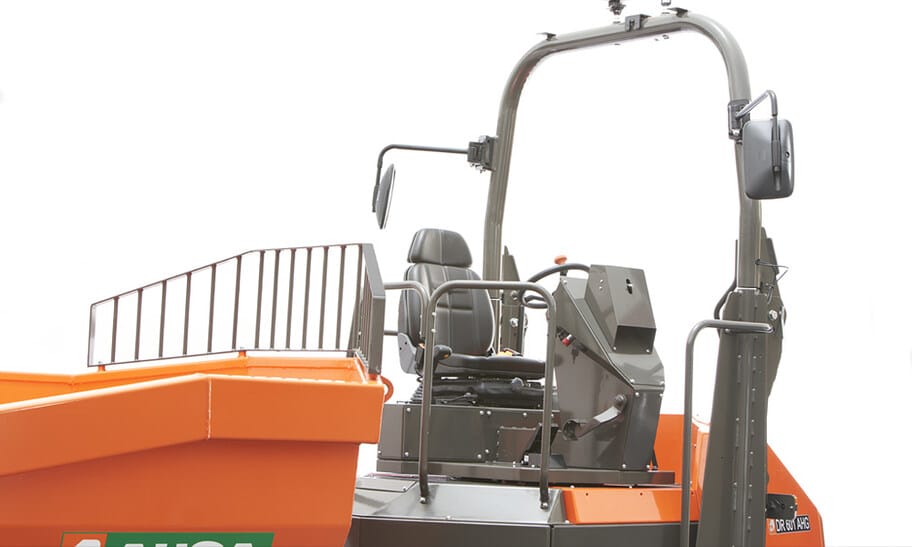

The DR601AHG reversible dumper has a 6,000 kg (13,200 lb) payload and comfortable hydrostatic transmission. Thanks to the innovative reversible design, the seat can rotate 180 degrees and all components are instantly adjusted to suit the driver’s new position: steering wheel, joystick, pedals, safety cameras, etc. The driver can also comfortably and safely get on and off both sides of the dumper, so speed and flexibility are significantly increased.
In terms of technology, various systems have been included to make it a more efficient dumper: it has the ECO Mode function, where the engine speed is automatically controlled to ensure lower fuel consumption and CO2 emissions.
It is fitted with the Hill Holder system, a start-assist and safety system that engages the dumper’s brake when you take your foot off the accelerator at zero speed. This significantly increases safety, especially when operating on slopes.
It can also be equipped with Smart Stop: a plug-in system that automatically shuts down the engine when it is not in use and the optimal time and safety requirements are met.
| General | Unloading system: | Rotating |
|---|---|
| General | Load capacity: | 13200 lb |
| General | Chassis: | Articulated |
| General | Water skip capacity: | 2.18 cu yd |
| General | Level skip capacity: | 3.21 cu yd |
| General | Heaped skip capacity: | 4.12 cu yd |
| General | Empty weight: | 10670 lb |
| General | Transmission: | Hydrostatic |
| General | Reversibility: | Reversible |
| Engine | Brand: | Deutz |
| Engine | Model: | TD3.6 L4 |
| Engine | Power: | 74.3 hp |
| Engine | Torque: | 300@1600 |
| Engine | No. of cylinders: | 4 |
| Engine | Emissions: | Stage IIIB – EPA Tier 4F |
| Engine | Noise level: | 101 dB(A) |
| Driving | Max. speed: | 15.5 mph |
| Driving | Maximum gradient: | 45% |
| Driving | External turning radius: | 232 in |
| Driving | Traction: | 4×4 |
| Driving | Tyres: | 405/70-20 |
| Hydraulic System | Flow rate: | 13.2 gal/min |
| Hydraulic System | Working pressure: | 2611 psi |
| Deposit capacity | Fuel: | 18.2 gal |
| Deposit capacity | Hydraulic system: | 15.8 gal |
| Brakes | Service: | Hydraulic, sealed, multi-disc |
| Brakes | Parking: | Negative |
Features
- Driving Position | Front folding ROPS protective structure
- Driving Position | Rear folding ROPS protective structure (Optional)
- Driving Position | FOPS protective roof on ROPS protective structure (Optional)
- Driving Position | Closed ROPS/FOPS cab with heating (Optional)
- Driving Position | Closed ROPS/FOPS cab with heating and air conditioning (Optional)
- Safety | Rotating beacon
- Safety | Acoustic warning for reverse gear
- Safety | Emergency stop (Optional)
- Safety | Anti-vandal security system
- Safety | Seat belt with fasten sensor
- Safety | Seat with operator’s presence sensor
- Safety | LED rotating beacon
- Safety | Green rotating beacon
- Safety | Hill Holder – hill-start assist
- Safety | Negative brake
- Safety | Full visibility camera on the skip side
- Safety | Full visibility cameras on the skip and counterweight sides and proximity sensors
- Safety | Protective grille on the skip
- Lighting and Driving | Approved lighting system (Optional)
- Lighting and Driving | Rear-view mirror
- Lighting and Driving | Second rear-view mirror
- Lighting and Driving | Third rear-view mirror
- Comfort | Adjustable ergonomic seat
- Comfort | Highly comfortable seat, fully adjustable (Optional)
- Comfort | All-in-one joystick
- Advanced Equipment | Hydrostatic transmission
- Advanced Equipment | Hydrostatic transmission with electronic control
- Advanced Equipment | Limited-slip differential on both axles
- Advanced Equipment | ECO Mode system
- Advanced Equipment | Smart Stop system
- Advanced Equipment | Digital display
- Accessories | Metal engine cover (Optional)
- Accessories | Reverse gear acoustic warning disable switch (Optional)
- Accessories | Waterproof document holder (Optional)
- Accessories | Biodegradable hydraulic oil (Optional)
- Accessories | Ball and towing hitch with power socket
- Accessories | Front mudguards
- Accessories | Car radio
- Accessories | Water separator diesel filter
- Accessories | Air filter with cyclone pre-filter
- Accessories | Ball and towing hitch
- Accessories | Power socket for the trailer
- Accessories | Rockinger hitch
- Tyres | Turf tyres 400/60 -155″ TL 14PR (Optional)
- Tyres | Pack of 4 turf wheels 560/45-22.5″ TL (Optional)
- Parts | 1,000 h maintenance kit (Optional)
- Parts | Standard spare wheel (Optional)
- Parts | Turf wheel 400/60-155″ TL 14PR
- Parts | Pack of 4 turf wheels 400/60 -155″ TL 14PR
